Explore Observation Studio

Observation Studio allows users to observe their environment in a variety of ways.


Dashboard shared outside of studio with commands: This dashboard is displaying data from one sensor that only records amperes. All other streams on this graph are derived by the GroveStreams derivation framework in combination with our time series rollup technique.

This dashboard can be seen live by clicking here. The update button has been disabled.
GroveStreams Dashboard Live

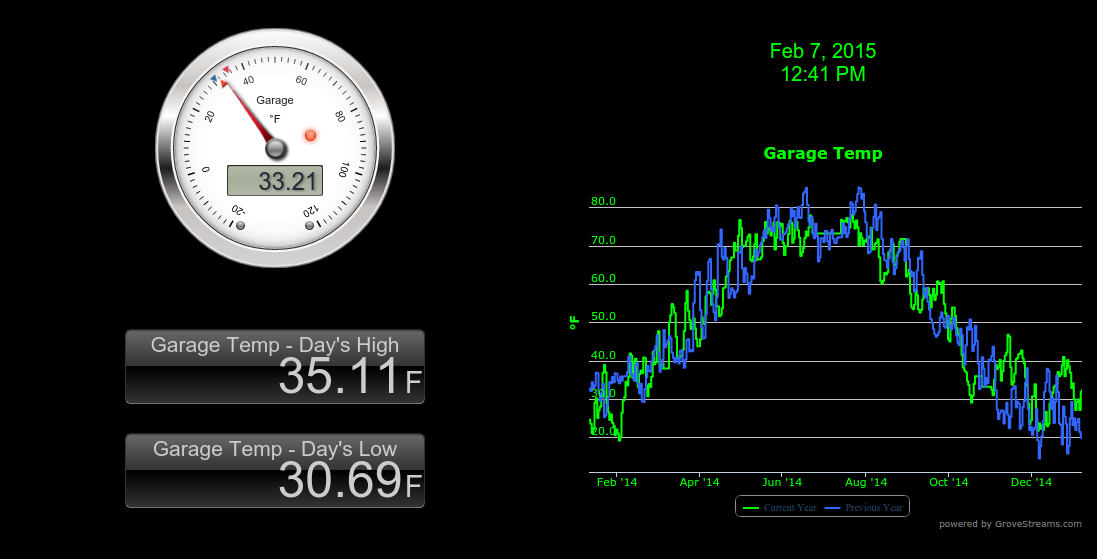

Customized Dashboard shared outside of studio: Compares last year's temperature to this year's temperature.

GroveStreams Dashboard Live




Styled Dashboard:

GroveStreams Dashboard Live

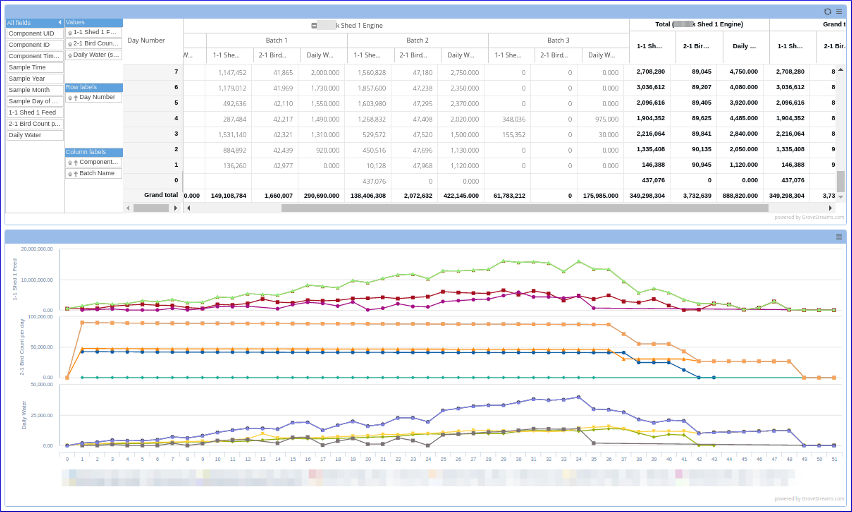

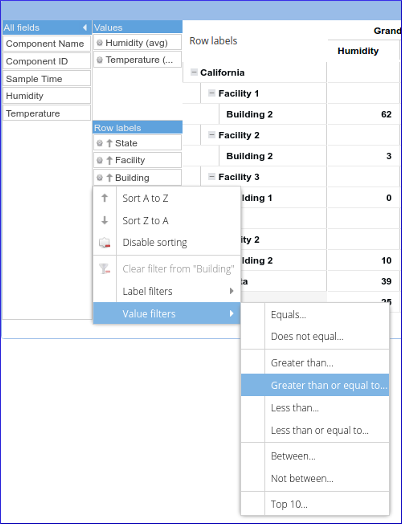

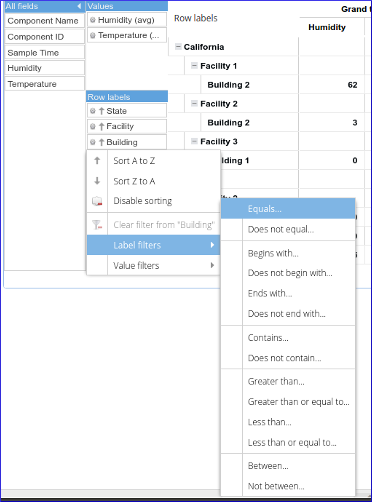

Dashboard with a Pivot Table: Dashboard pivot tables are a great way to allow users to see different views of stream data. Pivot tables allow data to be displayed as groups or in hierarchies while aggregating and displaying group sub-totals and grand-totals.

GroveStreams Dashboard Pivot Grid

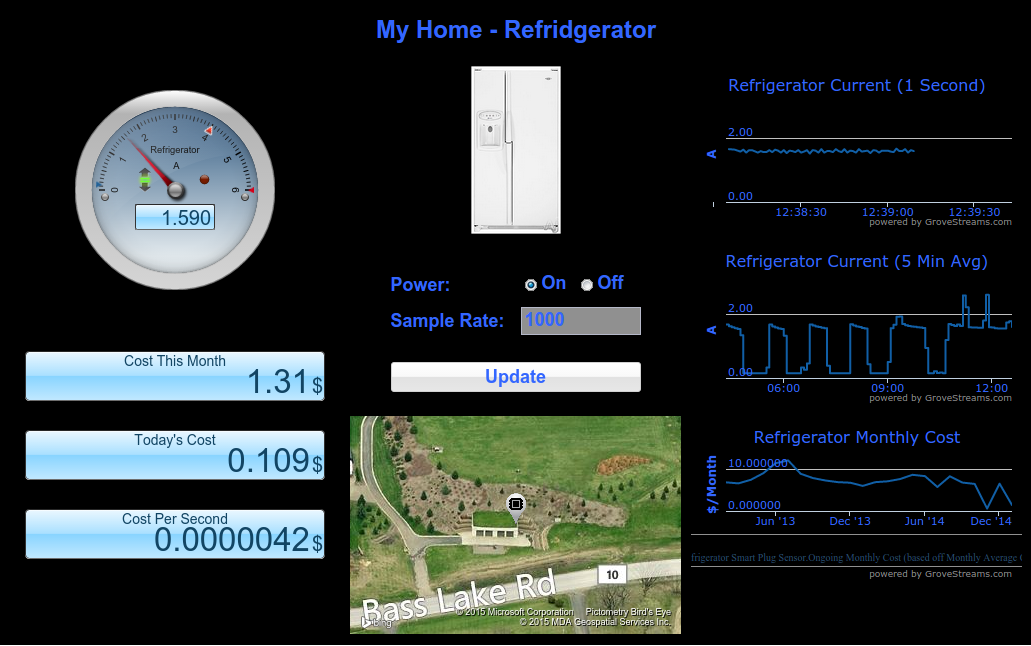

Dashboard Displaying Many Different widgets: The Refrigerator Monthly cost is slowly accruing, second by second, as one second ampere data is being uploaded into GroveStreams. Cost is a stream that is derived from the amperes stream which is converted to kWh and multiplied by a cost per kWh stream.

GroveStreams Dashboard Live

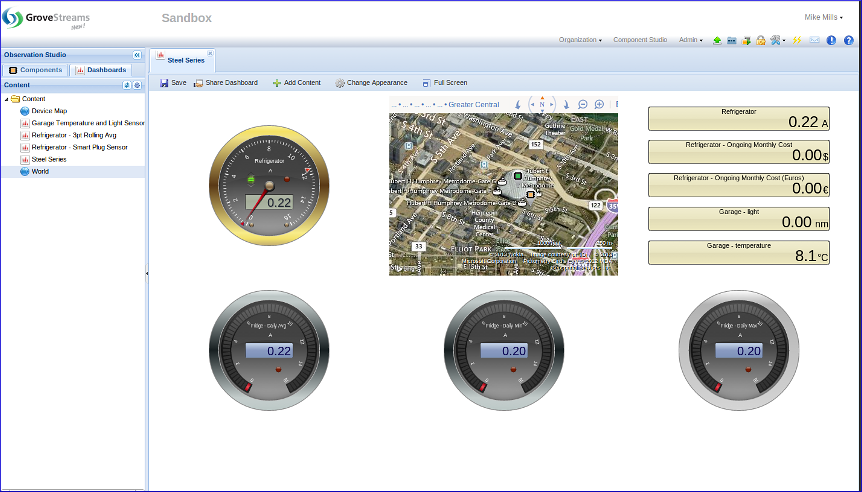

Dashboard Demonstrating some of our Steel Series widgets with a location map:

GroveStreams Steel Series Gauges

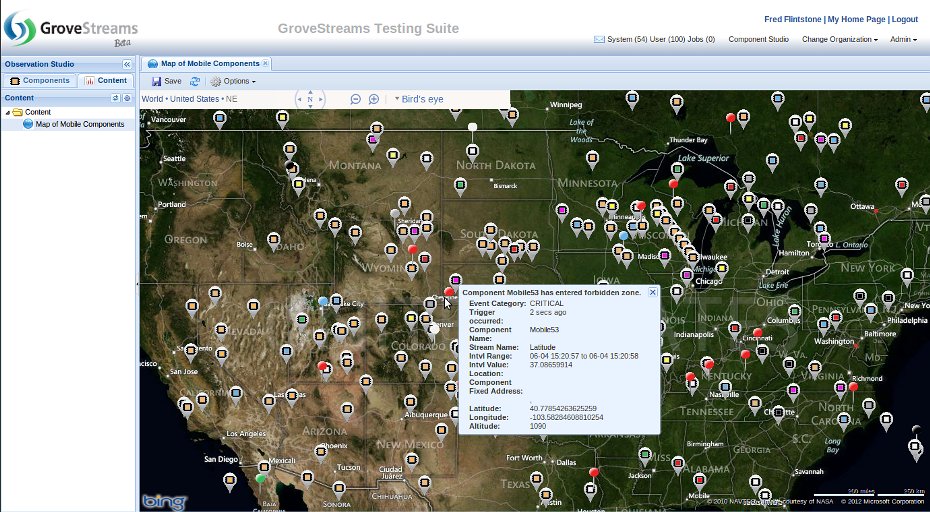

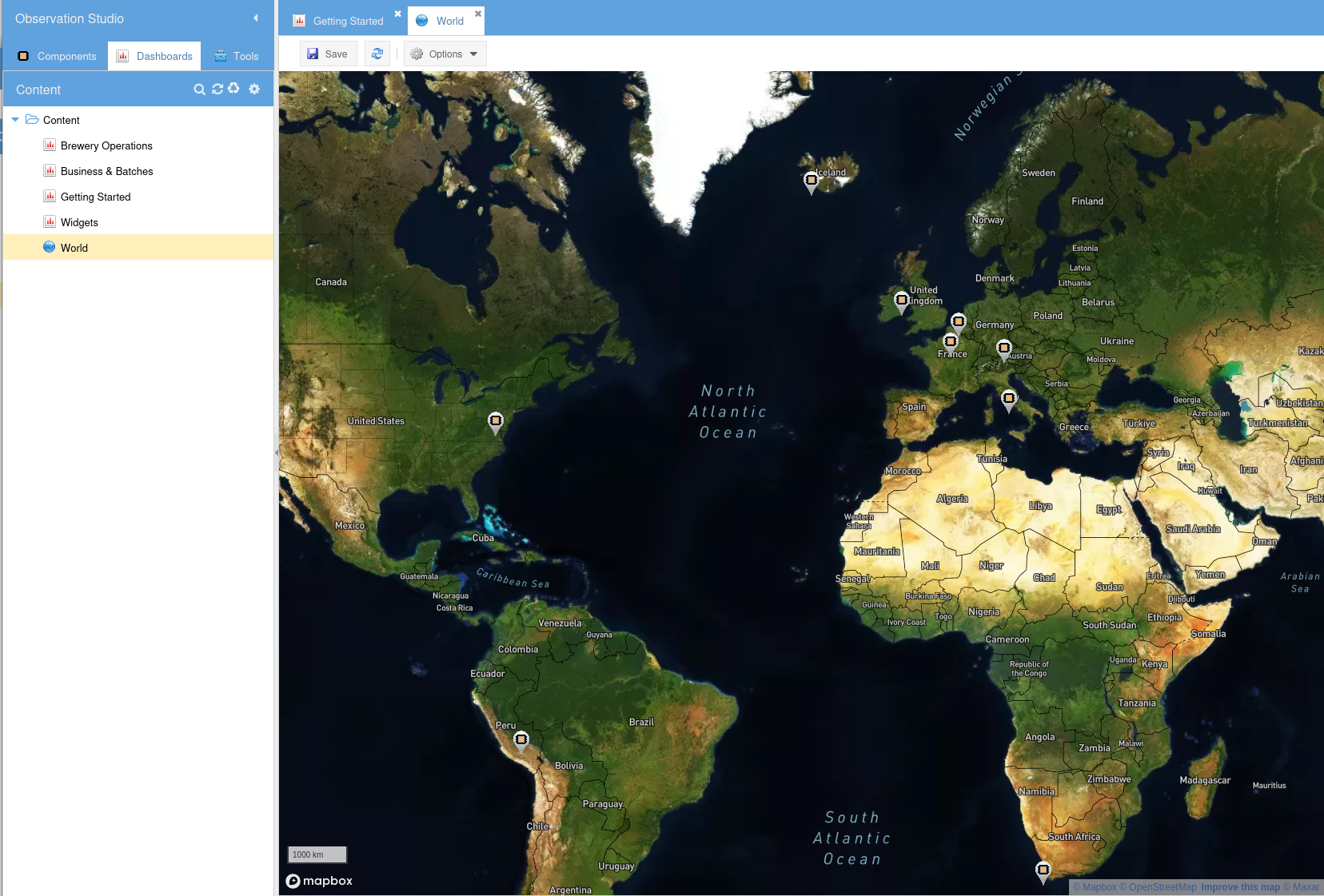

Observation Studio Maps: View a component's fixed or mobile location as data is uploaded in near real-time. Event markers will indicate where an active event started. Simply hover over one of the map's markers to get a brief description or click on the marker to get more details. Different maps can be defined and saved so that you don't have to navigate into a specific area each time you want to view a component or event's current location.

GroveStreams Maps

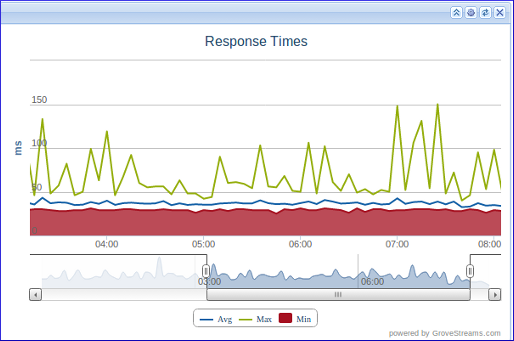

Graph Features: Multiple axes, mixed series, navigating and scrolling, zooming, and more.

GroveStreams Charts GroveStreams Charts

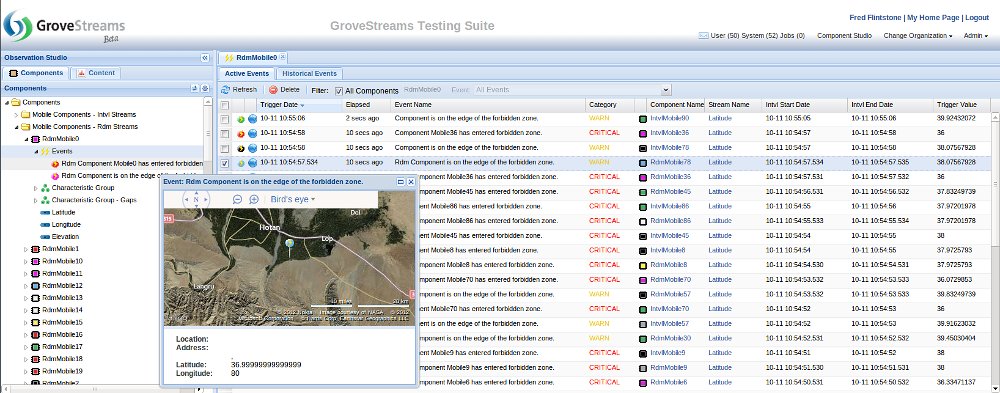

Observation Studio Events: View ongoing events and details about each event such as when and where they are occurring.

GroveStreams Events

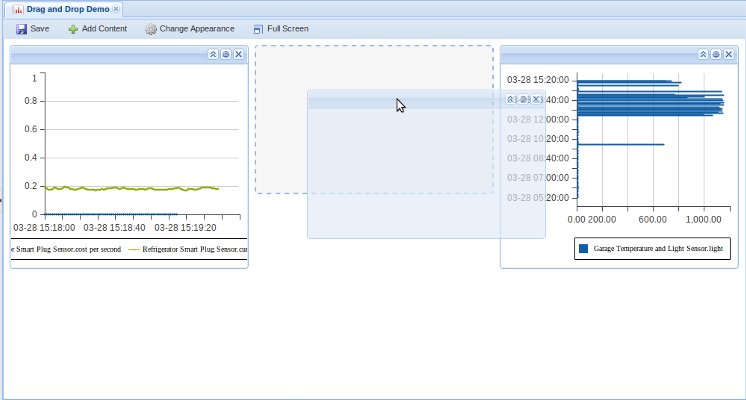

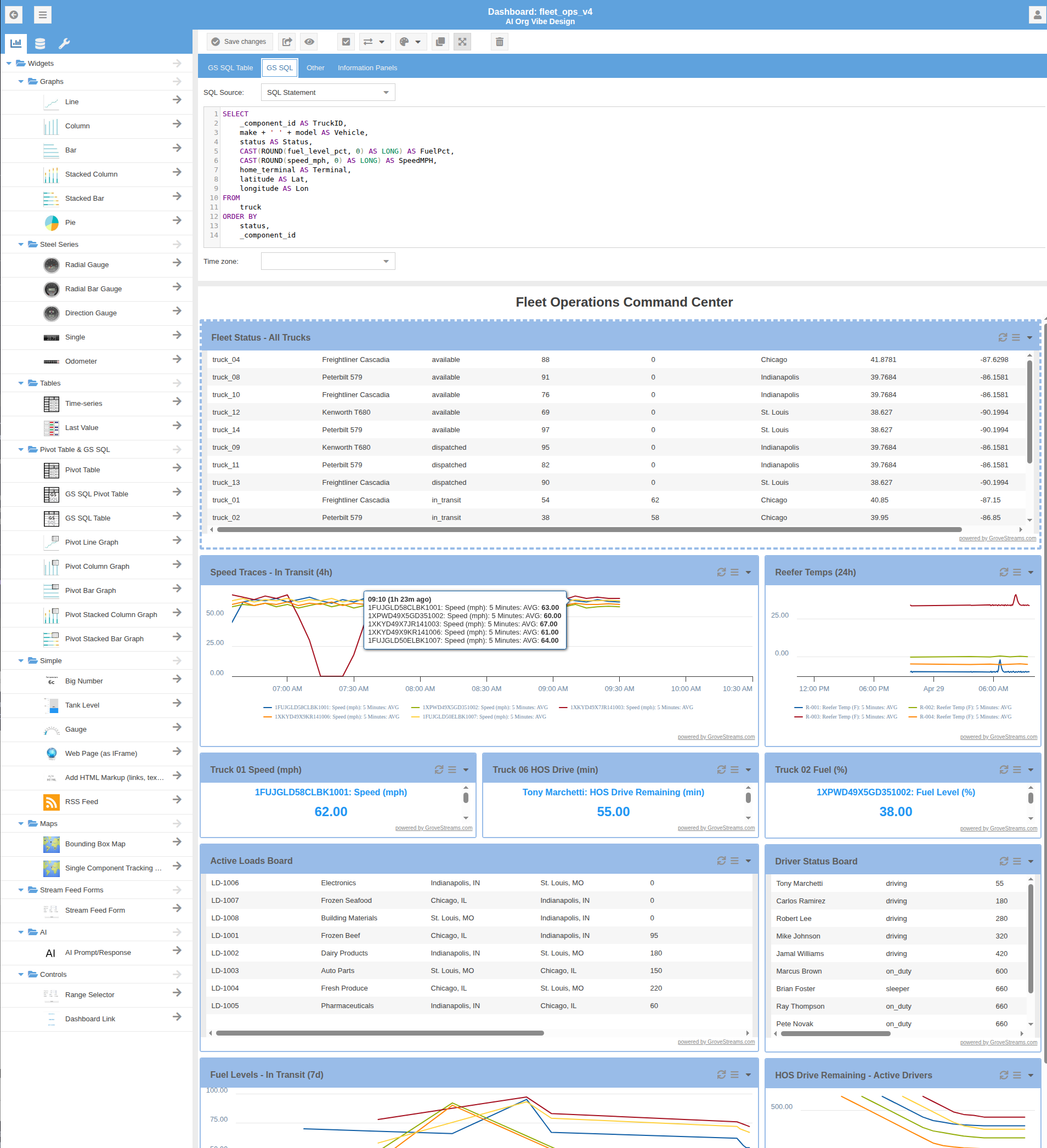

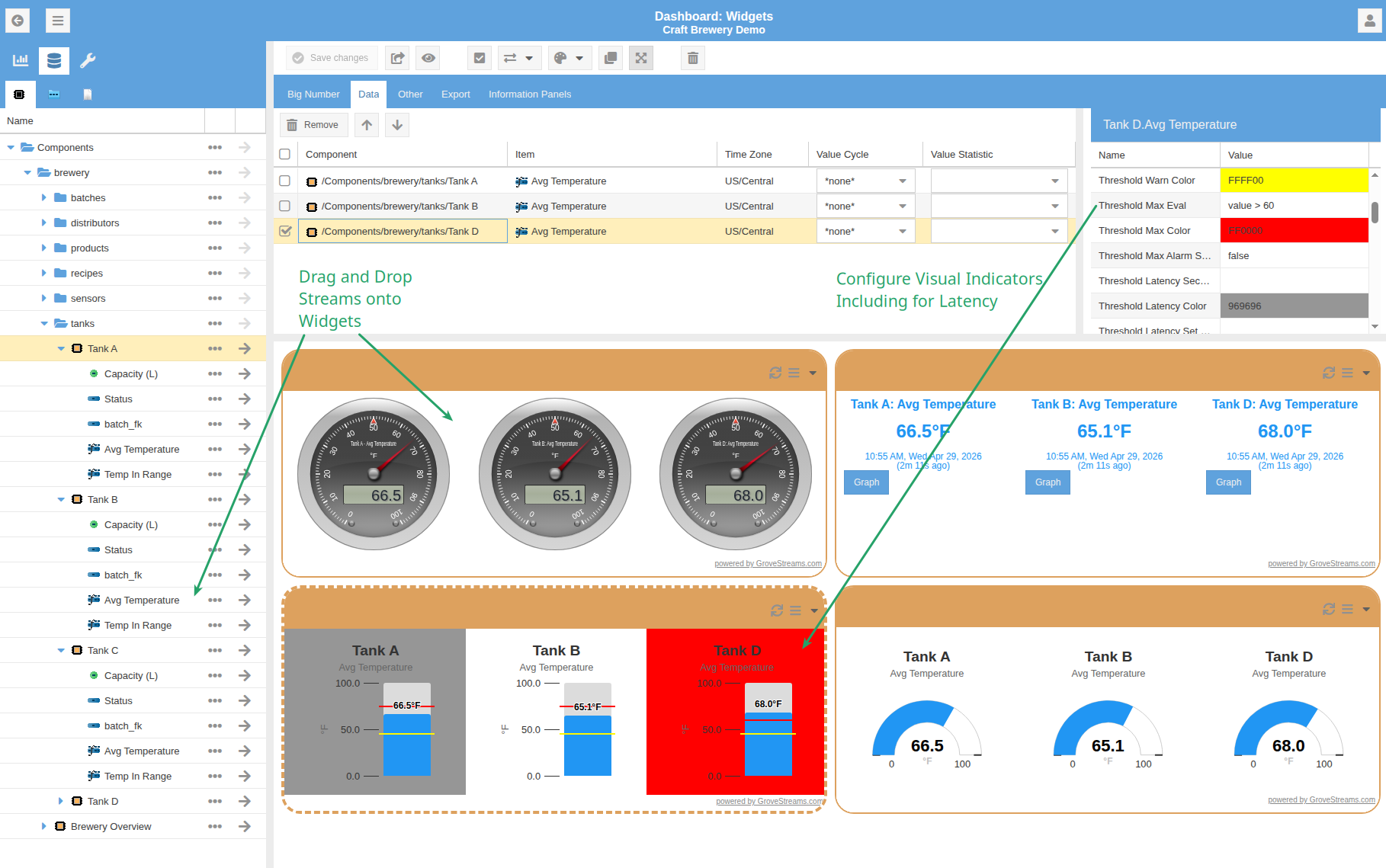

Dashboard: Users, with the appropriate rights, can create dynamic dashboards from many different widgets. Drag and drop widgets to the desired location and drag and drop one or more streams onto each widget.

GroveStreams Dashboard Widget Drag and Drop

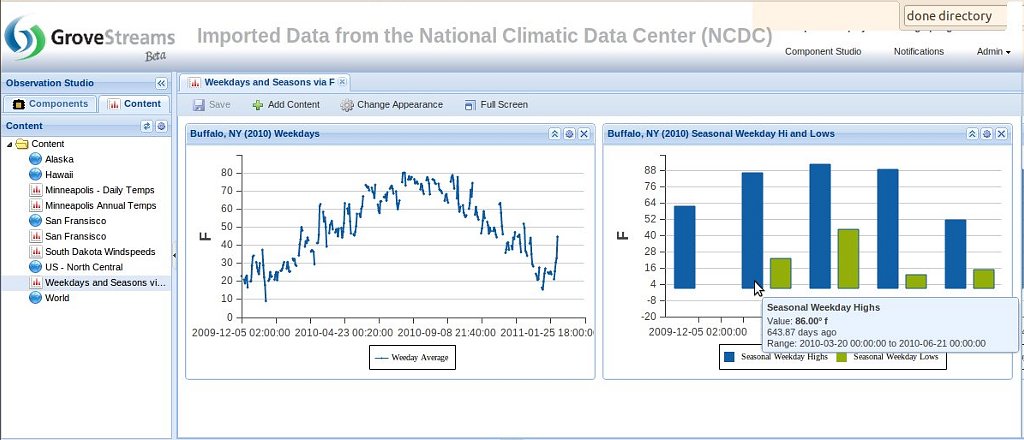

An example of a dashboard displaying a one minute base cycle weather stream that has a Time Filter constraint: Note that filtered out interval data display as gaps in the line graph.

The bar graph on the right displays a rollup of the time filter results - Seasonal Weekday Highs and Lows, which were derived from one minute weather data. These widgets have been setup as fixed time range widgets so that they can display historical results instead of 'heartbeat' reporting.

GroveStreams Dashboard Time Filter Example

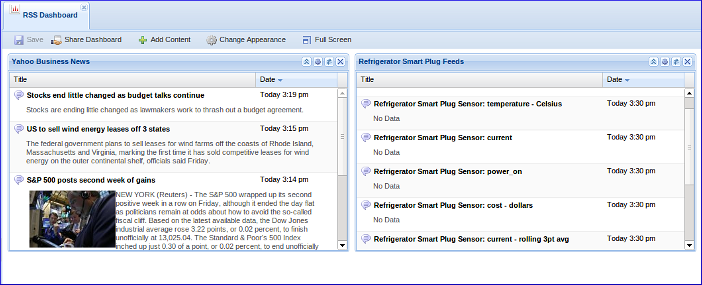

An example of dashboard RSS widgets. Display external aggregated RSS feeds or internal component or stream RSS feeds.

GroveStreams Maps

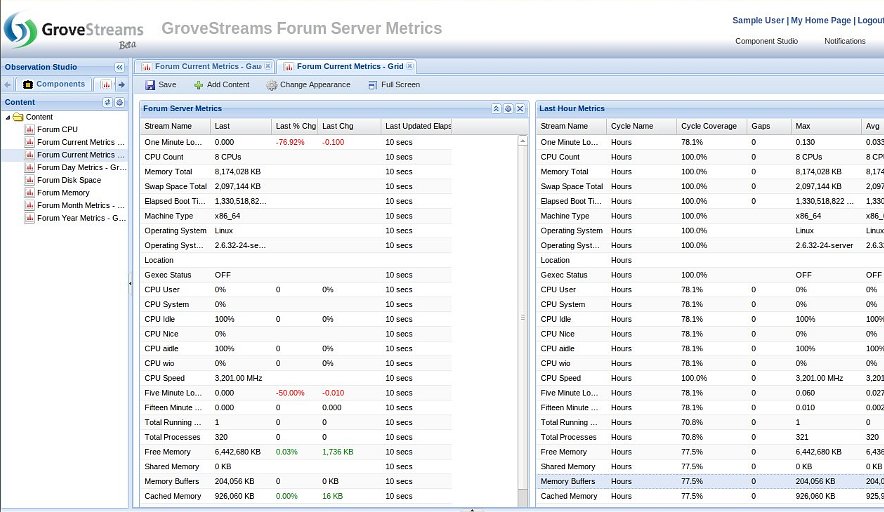

An example of dashboard grid widgets. Choose from over 50 columns of data to display within a grid widget.

GroveStreams Dashboard Grid Widget

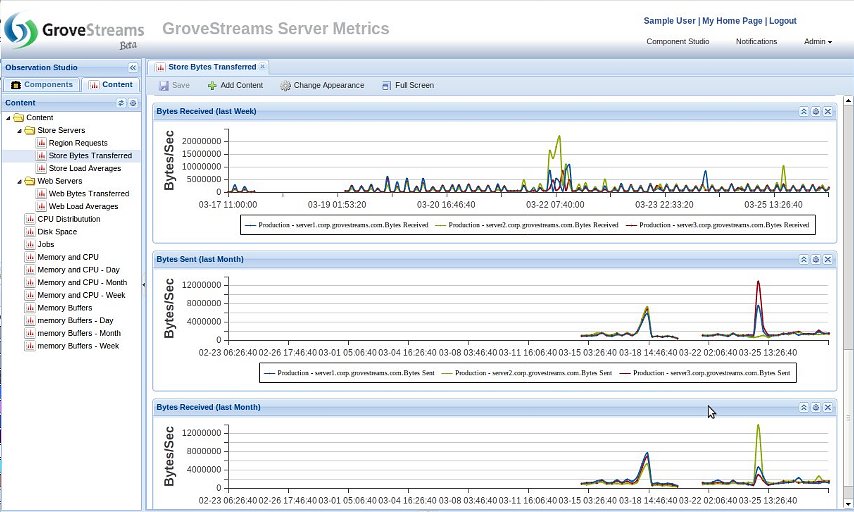

Rollup Monitoring Within a Dashboard: The below dashboard shows the power of rollups in an active widget. Each widget is displaying different rolled up time interval data which is available as data is uploaded.

GroveStreams Dashboard Demoing Rollups

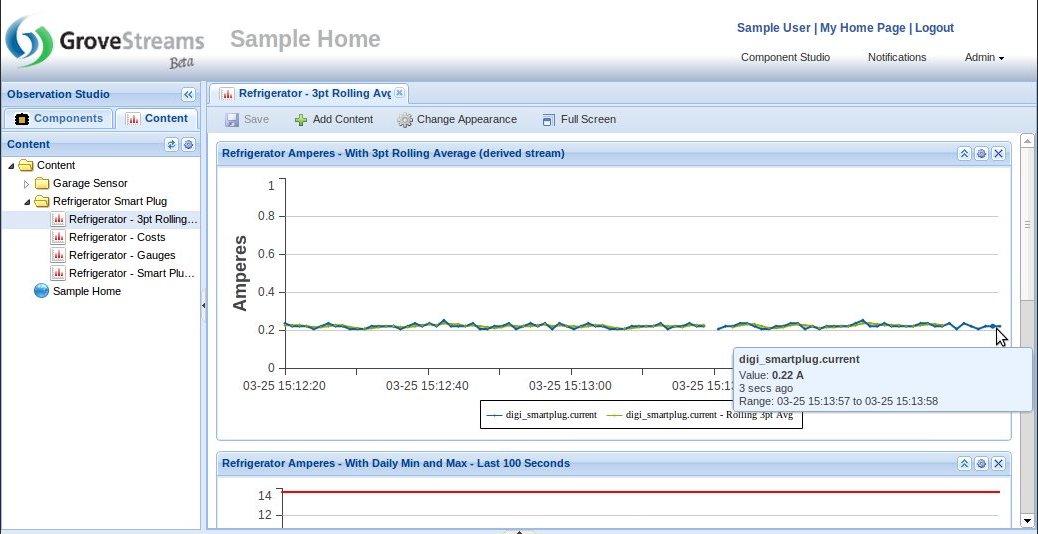

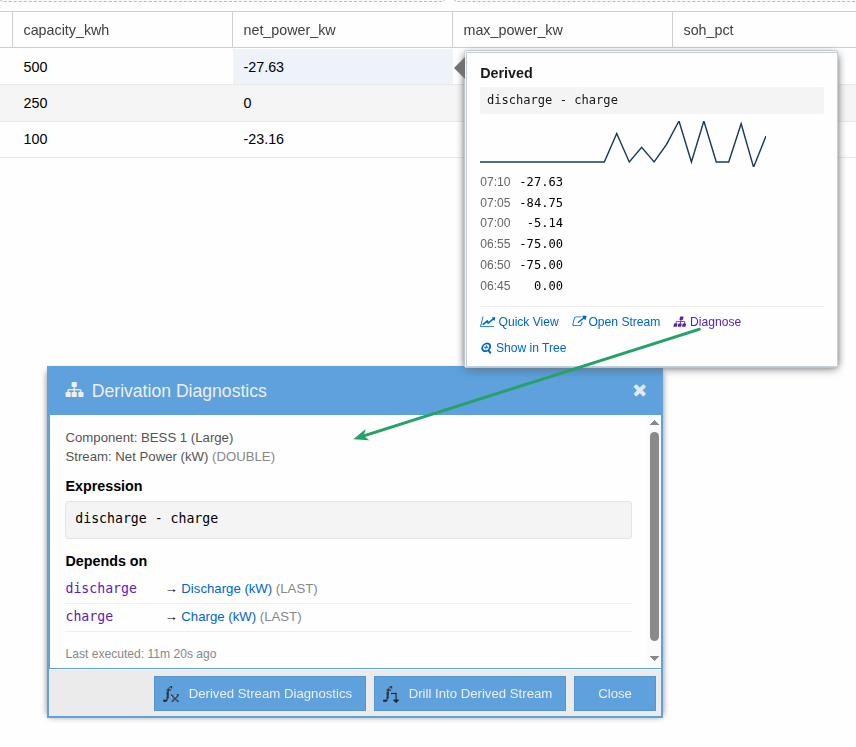

Derived Stream Monitoring within a Dashboard: This active widget is displaying base cycle stream data as it is being uploaded and it is also displaying, in the same widget, a stream derived from the base cycle stream data (3 pt rolling average). The GroveStreams derivation engine runs in parallel across all store servers every few seconds allowing derivation to occur shortly after base cycle stream data is uploaded.

GroveStreams Dashboard Demonstrating 3 point rolling average

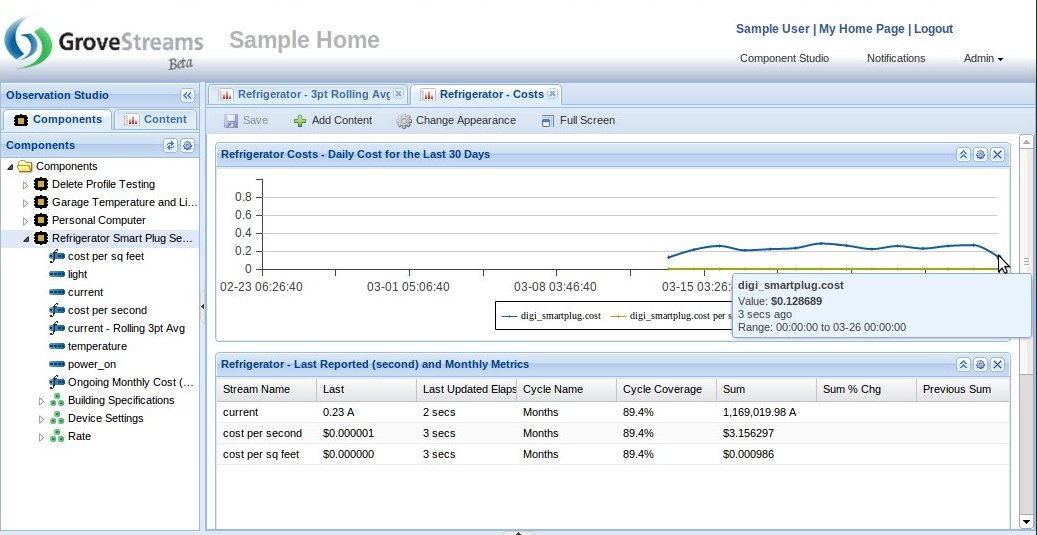

Derived Streams Monitoring Within a Dashboard: An example of an active widget displaying a derived stream, cost per sq ft,  being derived from another derived stream, cost. Stream derivation only occurs when all dependent stream interval data exists for the interval being calculated. Thus a stream derived from another derived stream will be calculated shortly after its dependent derived stream is derived.

GroveStreams Dashboard Demoing Average Costs

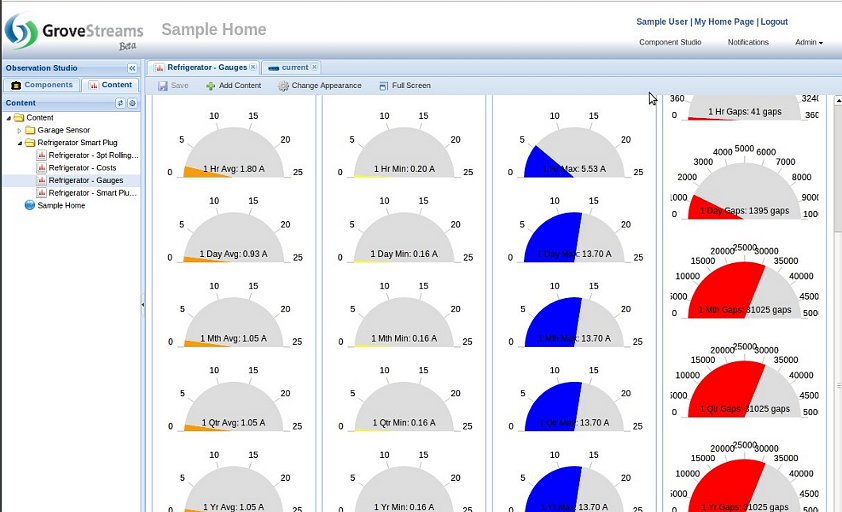

Dashboard Displaying Many Rollups from One Base Cycle Stream: The below dashboard is an example of the fraction of the amount information available for one stream associated with a rollup calendar. All of the information below is available immediately as the base cycle stream's intervals are uploaded or derived.

Dashboard Gauges Rollups

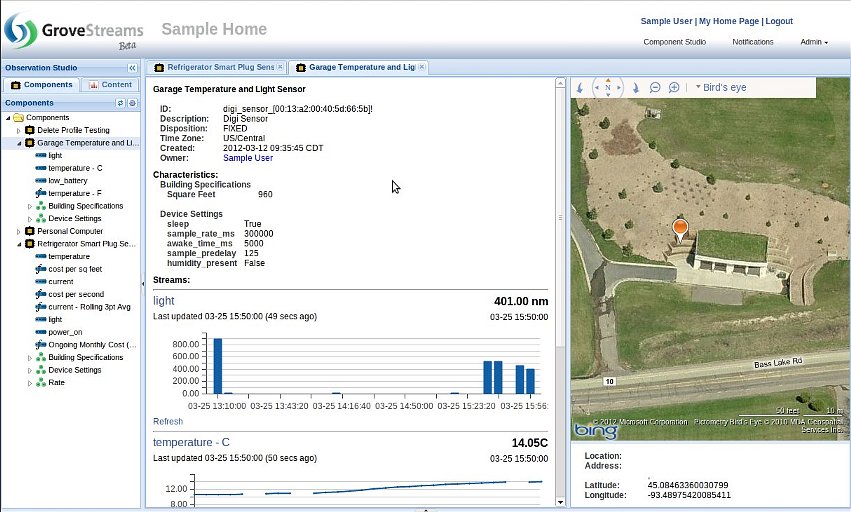

Component View: View all of a component's latest information including streams in one view. You can then click on a stream to bring up the stream view.

GroveStreams Component View

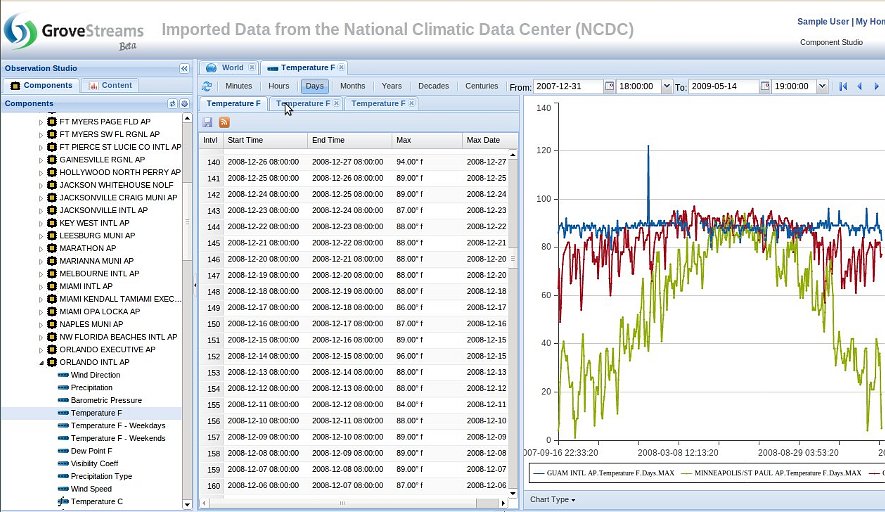

Stream View: Stream views allow actual data to be viewed or edited. You can also compare several streams and view rollup statistical information (minimums, maximums, min/max datetimes, gap counts, etc.).

GroveStreams Stream Comparison

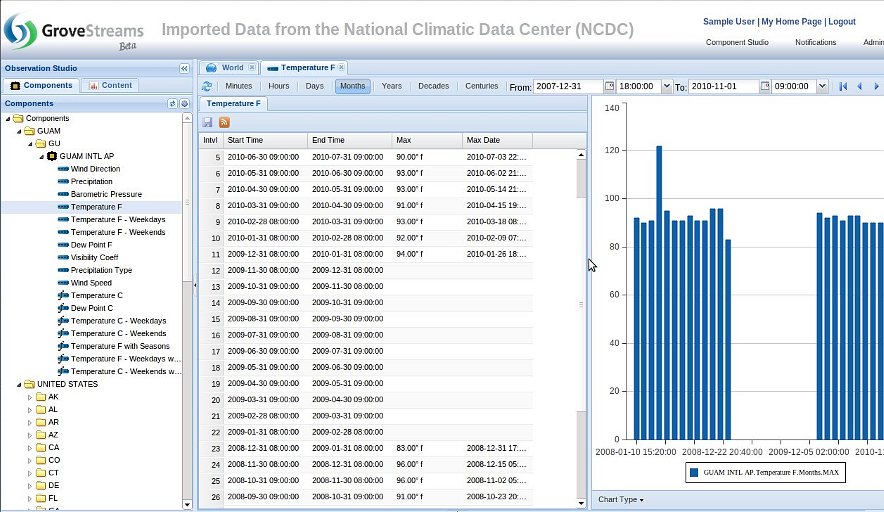

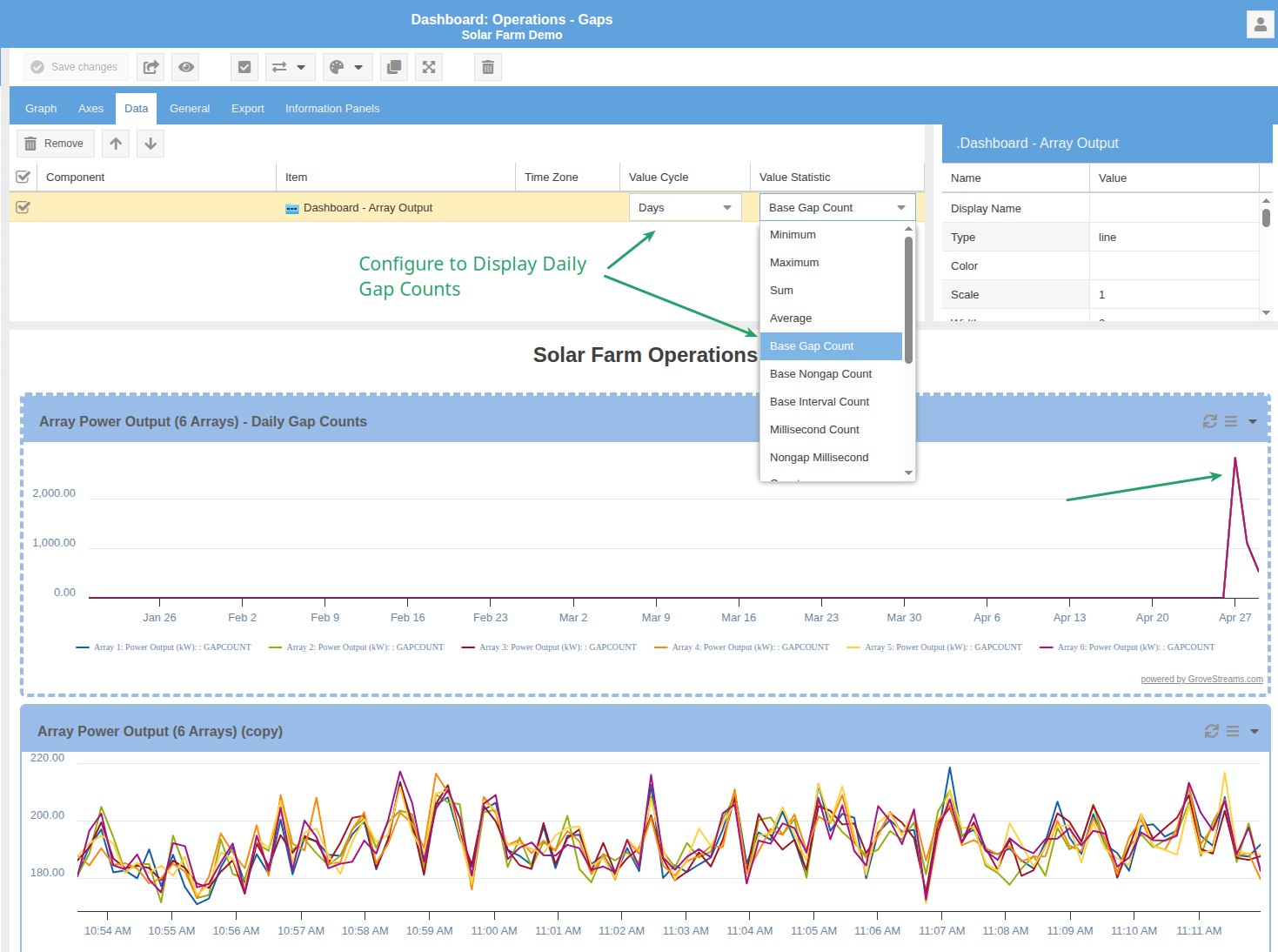

Stream View, Gaps: GroveStreams recognizes gaps in data. Below is an example of Gaps in a weather data stream. Gaps are ignored for rollup and derivation calculations. Gap count statistics are available for every rollup cycle range and can be viewed and graphed just like any other rollup statistic.

GroveStreams Drillthrough

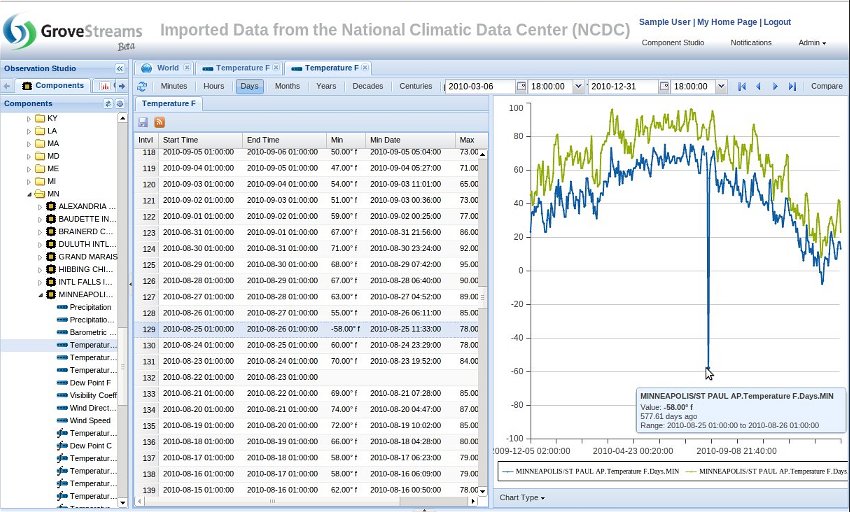

Stream View, Drill-through: An example of quickly identifying bogus data from within a graph. Hover over the suspect point and the value for that point will scroll into view and be selected on the left. Stream views support the concept of drill through. Simply click on the bogus data point within the graph and you will drill down a cycle and view the intervals that were used to calculate the rollup. Keep drilling down until you are viewing the actual uploaded value(s). GroveStreams allows you to edit any base cycle stream values and save them either within the Stream View or via our API.

GroveStreams Stream Highs and Lows

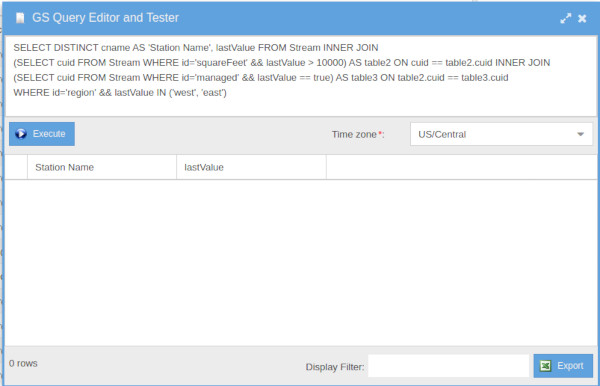

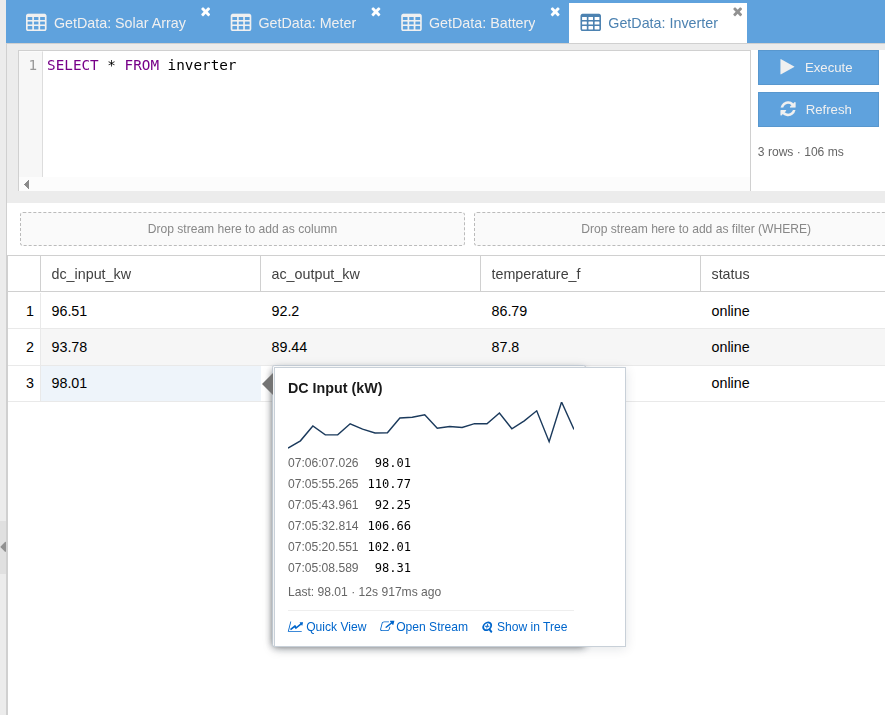

GS SQL Tester: GS SQL can be used within dashboard widgets. GS SQL can be scheduled, and the scheduled results can be included in dashboards or sent as an email.

GroveStreams Stream Highs and Lows
