Open a browser and navigate to the GroveStreams registration page and sign up.
After creating a free user account, log into GroveStreams.

Select Yes to create a new organization.

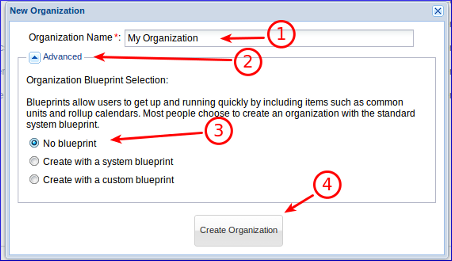

1. Enter a name for the new organization. Any name is allowed.
2. Expand the Advanced section.
3. Select No blueprint. This will create an empty organization with no existing units, cycles, or other entities so that basic modeling can be learned. If you were to select the system standard blueprint (the default), you could skip the manual creation of units, cycles, and rollup calendars.
4. Click Create Organization.

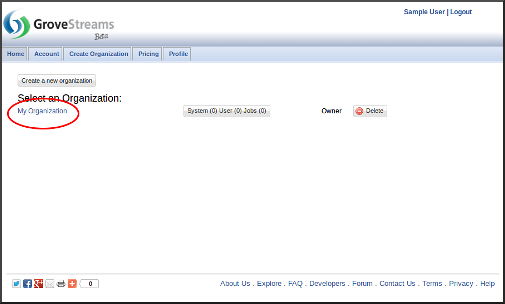

Select your new organization by clicking on its name.
You will be directed to the organization's observation studio page.

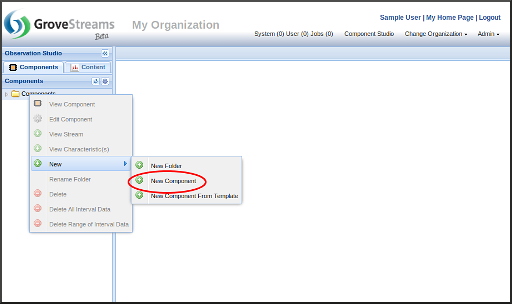

Right click on the Components folder and select New - Component

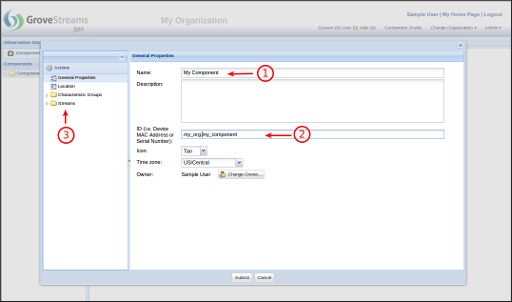

1. Enter a name for the component. It can be any name.
2. Set the ID to: "myOrg.myComponent". This will be used later in the feed upload code - step 5. You can change the ID, but it must match the ID used in the code below.
3. Right click on the Streams folder and select Add - Stream - Interval Stream.
    Note that you could create a Point or regular stream. The below sample feed code will work with all three stream types.
    If you do choose to create a Point or regular stream, then you can skip the the cycle creation and assignment steps below. Regular streams are more flexible as they do not require changing the model when the sample frequency is changed.

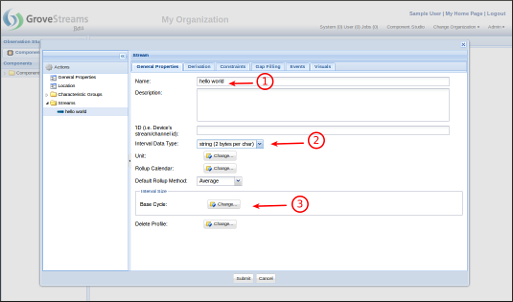

1. Enter a name for the new stream. It can be any name.
2. Select Data Type as string
3. Select a base cycle for the stream by clicking the Change... button

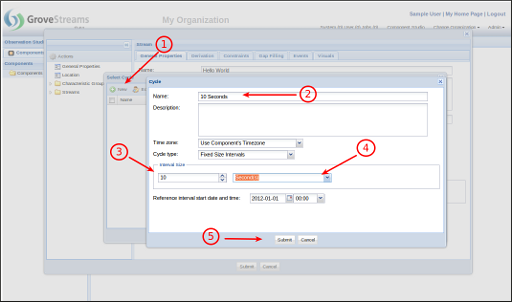

1. Click the New button to create a new cycle
2. Enter "10 Seconds" for the new cycle name
3. Enter "10" for the cycle size
4. Choose Seconds for the cycle size type
5. Save the new cycle

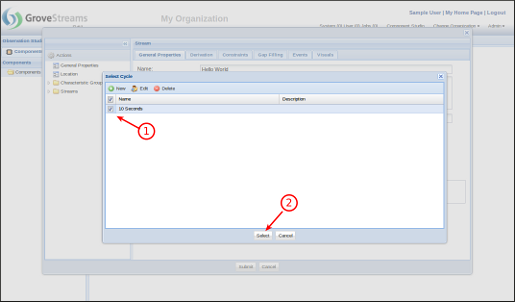

1. Select the newly created cycle
2. Click the Select button

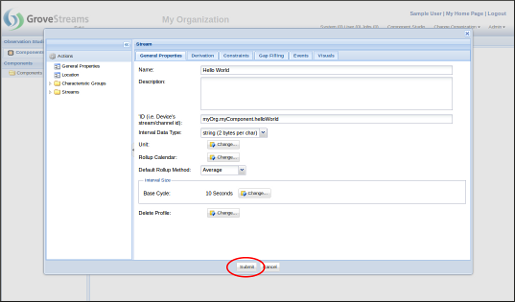

Click the Save button to save the newly created component and stream.

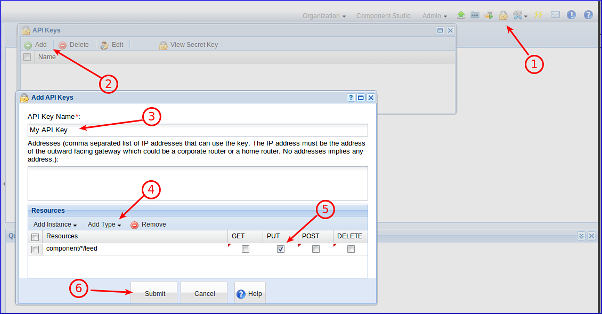

1. Click the API Keys button
2. Click the Add button 2. Enter a name for the new API Key. It can be any name.
4. Click the Add Type button and select component/*/feed
5. Ensure PUT is only selected
6. Click Save

This API key will give your GroveStreams API clients rights to upload feed data for all streams for this organization. This key could be restricted to certain IP addresses and/or to a specific stream, but for this example we will create a key that can be used for all feeds for this organization.

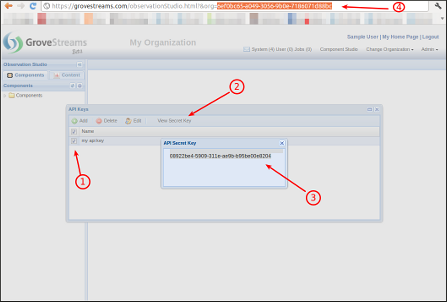

1. Select the newly created key
2. Click the View Secret Key button
3. You can select the secret key id and copy it to the clipboard (Ctrl-c) and paste it (Ctrl-v) into your feed code (Step 5 below)

The GroveStreams API is RESTful and can be used from any programming language. This example uses Java with the simple Feed PUT API, which does not require JSON.

We highly recommend downloading and installing a free Java editor such as Eclipse.

1. Download and run Eclipse

2. Create a Java Project in Eclipse

3. Create a Java class called HelloWorld and copy the code below to this new class file

4. Right click on your Java Project and choose Build Path - Configure Build Path, click on the libraries tab, choose Add JARs (or Add External JARs, depending on where you placed the required libraries) and add the required library jars

Required Libraries

commons-codec-1.4.jar
commons-httpclient-3.1.jar
commons-logging-1.1.1.jar

These libraries are free and can be found online at:

http://commons.apache.org/

Code (Don't forget to replace the api_key token in the code below with your Secret API Key!)

import java.io.IOException;
import java.net.URLEncoder;
import java.text.SimpleDateFormat;
import java.util.Calendar;
import java.util.GregorianCalendar;

import org.apache.commons.httpclient.HttpClient;
import org.apache.commons.httpclient.HttpStatus;
import org.apache.commons.httpclient.methods.PutMethod;

public class HelloWorld {

    private static final String api_key = "YOUR_SECRET_API_KEY_HERE"; //Change This!!!

    private static final String component_id = "myOrg.myComponent";

    public static void main(String[] args) {
        PutMethod putMethod = null;

        try {

            // Connect to GroveStreams
            HttpClient httpClient = new HttpClient();


            while (true) {

                Calendar cal = new GregorianCalendar();

                SimpleDateFormat sdf = new SimpleDateFormat("yyyy-MM-dd HH:mm:ss");
                String nowStr = sdf.format(cal.getTime());
                String data = "Hello World. The current time is: " + nowStr;

                //URL encode the data text
                data = URLEncoder.encode(data, "ISO-8859-1");
                String url = String.format("https://grovestreams.com/api/feed?api_key=%s&compId=%s&data=%s", api_key, component_id, data);

                putMethod = new PutMethod(url);
                putMethod.setRequestHeader("Accept", "application/json");
                putMethod.setRequestHeader("Content-type", "application/json");

                //Upload the sample
                int statusCode = httpClient.executeMethod(putMethod);
                if (statusCode != HttpStatus.SC_OK) {
                    System.out.println("Upload to grovestreams.com failure: " + putMethod.getStatusLine().toString());
                } else {
                    System.out.println("Upload to grovestreams.com succeeded");
                }

                //Sleep 10 seconds
                Thread.sleep(10000);
            }

        } catch (IOException e) {
            System.out.println(e.getMessage());
        } catch (InterruptedException e) {
            System.out.println(e.getMessage());
        } finally {
            // Release the connection
            if (putMethod != null) {
                putMethod.releaseConnection();
            }
        }
    }
}



The easiest way to run the script is from within Eclipse.

Right click your HelloWorld class and choose Debug As — Java Application.

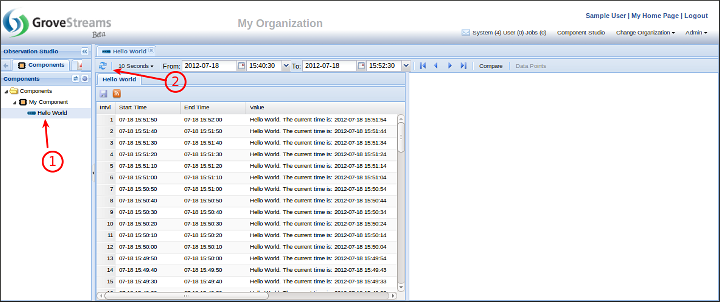

1. Double click the Hello World stream
2. Click the Refresh button to see the latest intervals
